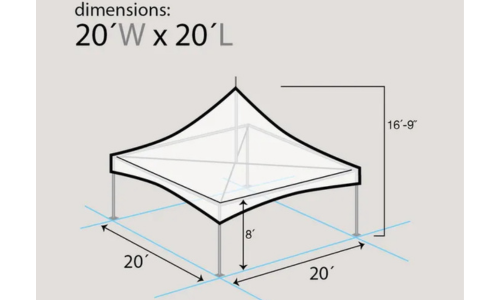

20' X 20' Premium High Peak Tent

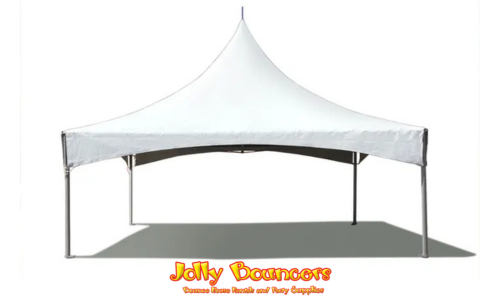

Our 20' x 20' West Coast High Peak Frame Tent is the latest addition to our party tent offerings. These awesome canopy tents marry the versatility and stability of a traditional west coast frame tent, with the aesthetic appeal of our popular High Peak Frame Tent. Unlike traditional cross cable High Peak tents, this hybrid tent creates the high peak design using pipes, a 8 way crown adapter and a shortened center pole.

The high peak tent also does not require center poles, which provides optimal space inside the structure for guests and equipment. This tent features a rigid anodized aluminum frame and galvanized steel fittings. The steel fittings manufactured from 1.25" schedule 40 steel pipe and finished with a zinc plating. The frame uses a 2" diameter single tube anodized aluminum pipe.

The tent top is made from 16 oz block-out PVC vinyl material that is resistant to mold, mildew, flame and is 100% waterproof. They feature 1" heat-sealed overlap seams, 2" nylon webbing and multi-layered reinforcement at all pole locations for maximum durability and longevity. There are also replaceable polyester sidewall ropes fastened with polyester webbing to allow for the addition of sidewalls (sold separately). Identification and flame certificate labels are heat bonded to each top.

These versatile tents are typically used for outdoor events and vendor booths at fairs, trade shows, and other similar venues. They also make great additions to weddings, rehearsal dinners, bridal parties, baptisms and more.

Seating Capacity

• 33 people for sit down dinners
• 40 for buffet-style dinners
• 50 people for cathedral (row) seating
• 80 for stand up, cocktail style parties

Sidewall Requirements:

• 8ft tall. The finished size height of 8ft sidewalls is 7ft 7in.
• Sidewalls are available in 10ft, 15ft, 20ft, and 30ft in length.
• Sidewalls are available in Solid and Window styles.

SAFETY PRECAUTIONS : Weather is unpredictable, installer/end-user must incorporate knowledge of local weather conditions in accordance with the installation instruction guidelines.:

• Rain water may collect on the tent fabric perimeter causing "ponding" or "water pocketing". Ensure the tent is installed and tensioned correctly. The additional weight from the water can cause the tent to sag, ponding will get worse. This may cause partial or complete collapse and damage to the top/frame components/and poles.
• Wind, Wind/Rain combination can cause rope/ratchet and ground stakes to loosen. This may cause partial or complete collapse and damage to the top/frame components/and poles.
• Lightning: Immediately evacuate the tent until the chance of a lightning strike is no longer present.
• It is very important to do routine maintenance checks on ropes/ratchets and stakes and maintain proper tension on the tent top at all times
